S7000-24QF8DQ 24-Port 200G + 8-Port 400G Data Center Core Switch
MODELS7000-24QF8DQ
24 x 200G QSFP56 + 8 x 400G QSFP-DD ports, defining future core bandwidth density
Advanced L3 features (BGP), VXLAN, MCLAG & RDMA lossless networking
High 16.0Tbps bisectional bandwidth & 12000 Mpps forwarding for extreme throughput
Fully redundant 1+1PSU,N+1fans hot-swappable design for 100% uptime
Designed for next-gen AI compute clusters, hyperscale cloud core & IXP hubs
GET A FREE QUOTE
HODONET S7000-24QF8DQ Product Specifications
*24-Port 200G + 8-Port 400G Data Center Core Switch*
| Category | Item | Specification |
|---|---|---|
| Overview | Description | A flagship data center switch designed for future AI compute and hyperscale cloud cores, featuring 24x 200G QSFP56 ports and 8x 400G QSFP-DD ports. With 16.0Tbps bisectional switching capacity and comprehensive support for VXLAN, BGP, MC-LAG, and RDMA lossless networking, it is built to power the next generation of high-performance, low-latency, and massively scalable intelligent network backbones. |
| Physical Specs | Model | S7000-24QF8DQ |
| Switching Capacity | 8.0 Tbps (Unidirectional) / 16.0 Tbps (Bidirectional) | |
| Forwarding Capacity | 12000 Mpps | |
| Dimensions (L×W×H) | 442 mm × 550 mm × 44 mm | |
| Weight | < 12 kg | |
| Management Ports | 1 x RJ45 Console, 1 x Management Port, 1 x USB | |
| Data Ports | 24 x 200G QSFP56 Ports, 8 x 400G QSFP-DD Ports | |
| Input Voltage | AC: 100-264Vac, 50-60Hz DC: 190-310Vdc | |
| Power Draw | Static < 250W, Max < 1300W | |

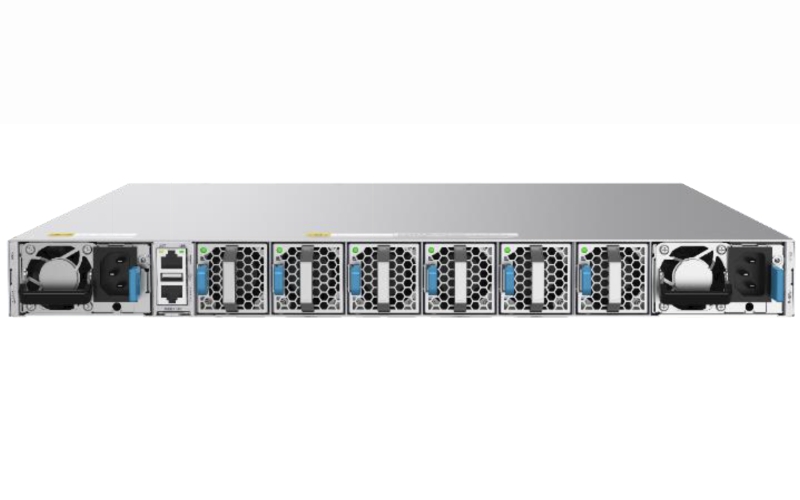

| Redundancy | 2 Hot-plug PSUs (1+1 Redundancy) 6 Hot-plug Fans (N+1 Redundancy) | |
| Environmental | Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) | |
| Software Features | Port & Basic | Port Speed/Link-Delay/MTU Setting, Mgmt Port Enable/Disable, LF/RF Alarm, Port Oscillation Suppression, Port Aggregation (Static/LACP), LLDP, Port Description |
| MAC & VLAN | Dynamic/Static MAC, MAC Learning/Aging/Migration, Port-based VLAN (Access/Trunk Mode) | |
| IP Routing | Static/Default Routing, ECMP/UCMP/Policy Routing, BGP/BGP+ (Routing Policy, Aggregation, Hardware Fast Switching, BFD, Route Inversion Suppression) | |
| IP Protocol Suite | Full IPv4 (ARP, ICMP, TCP, UDP, etc.) and IPv6 (ND, ICMPv6, TCP, UDP, etc.) support | |
| Data Center Features | VXLAN, MC-LAG | |
| Lossless Network | RDMA Lossless Ethernet (PFC, ECN), PFC Deadlock Detection, Congestion Avoidance (WRED, Tail Drop) | |
| Tunnel | GRE Support | |
| QoS/ACL | Data Plane Access Control, Global/Port/Ingress/Egress ACL, Flow Classification (Src/Dst IP, Protocol, Port), Actions (Redirect, Forward, Discard), DiffServ QoS, CAR Rate Limiting, SP/WRR/DWRR Queue Scheduling, Flow Shaping, Congestion Avoidance (WRED, ECN), 802.1p/DSCP Priority Mapping | |
| Security | CLI Hierarchical Protection, Data Logs, ACL Flow Filtration, Parity/ECC Detection & Repair, Kdump, NAT | |
| Administration & Maintenance | SNMP V2/V3, CLI (Console/Telnet/SSH), ZTP (Zero Touch Provisioning), Warm-Restart, RESTCONF/YANG, Python2/3 Support, System/User Logs, Hierarchical Alarms (PSU, Fan, Temperature), NTP, Debugging Tools (Ping, Tracert), File Upload/Download (FTP, TFTP, USB), Hotfix, Fan & Power Module Monitoring | |
| Flow Monitoring | sFlow, Mirroring (SPAN, ERSPAN, CPU), Port-based PPS/BPS Statistics | |
| DHCP | DHCP Server/Client, DHCP Snooping, DHCP Relay |
